ARCHLINE.XP PROFESSIONAL IS A 3D CAD/BIM MODELING SOFTWARE, DESIGNED FOR PROFESSIONAL PURPOSES

ARCHLine.XP contains highly specific tools in architecture and areas such as kitchen, bath and interior design. You can create beautiful renderings both for the interiors and exteriors of the project.Οι γρήγορες και αποτελεσματικές νέες μέθοδοι βοηθούν στην ακρίβεια του σχεδιασμού, όπως στρώσεις πλακών με κλίση και μεταβλητό πάχος, layers και σχεδιαστικές φάσεις τοίχου, πλήρως προσαρμόσιμες συρόμενες πόρτες, νέα χαρακτηριστικά ευθυγράμμισης σε 2D και 3D προβολές.

Simplicity when possible, power when necessary

NEW RENDERING ENGINE

Bring Your Designs to Life with ARCHLine.XP 2023’s New Render Module!

Our simple and fast solution offers photorealistic renderings with advanced shading effects such as ambient occlusion, shadows, and transparency to show even the finest details in your scenes.

The rendering process is quick and easy, and can be grasped within a day. Both skilled and novice users can tailor it to their preferred workflow, technical abilities, or preferences.

It is designed to be user-friendly for simple tasks and offers powerful capabilities for more complex ones, adhering to the motto of “Simplicity when possible, power when necessary.”

more modern and intuitive look

INTERFACE IMPROVEMENTS

The user interface has become simpler and more modern as a the result of daily work and sharing user experiences with software users.

Many screens such as the Staircase or RoomBook now have a more modern and intuitive look, new grips in the design move more and more frequently used commands directly into the 2D view, where you work!

clear and understandable presentations

COLOR SCHEMES

Experience the future of visualization with our new graphical override method, the Color Scheme feature!

It allows to communicate design properties with colours that help visualise and understand the contents of the design. ARCHLine.XP recolours selected elements by property, condition and value. A legend of the colour schemes can be generated to produce complete designs.
Impress your clients and colleagues with clear and understandable presentations using this innovative feature.

υπολογίζει αυτόματα την προεπιλεγμένη τιμή για το πάχος πλατύσκαλου

REBAR TOOL

Reinforce Your Concrete Models with Ease Using the Rebar Tool!

Define and place pre-determined concrete steel shapes or customize your own with this innovative tool, perfect for reinforcing concrete modeling elements such as columns, beams, and slabs.

increasing the quality of the final result

RTF TEXT EDITOR

ARCHLine.XP 2023 allows you to integrate texts from RTF (Rich Text format) sources.

RTF documents can be written directly in the software editor or copied and imported from Word or similar format files. The texts retain most of their formatting characteristics.

You can now complete your tables with annotations or formatted reports, increasing the quality of the final result.

stunning 3D animation

CONSTRUCTION ANIMATION

This new feature allows you to visually describe the construction sequence by representing it as a timeline.

The 3D model will be composed one piece at a time associated with the different phases of the timeline. Get a visual representations of the construction phases and complement your 2D drawings and schedules with this tool, making it easier to understand the project.

The output is a stunning 3D animation that showcases elements along a timeline.

ARCHLine.XP 2023 supports IFC4 and IFC2x3 import/export

IFC 4.0 IMPORT/EXPORT

IFC4 is a later and more up-to-date scheme than IFC2x3 and several implementations have been added including the import and export of Texture and Material BIM Parameters. Brep mode is replaced by a new 3D generation system for exporting generic elements, which results in a significant saving in file size.

detect conflicts and improve design

INTERFERENCE CHECK

The Interference Check (MEP) tool searches for conflicts between a set of selected entities or between all entities in the model.

The purpose of the tool is to detect conflicts and improve design by reducing unforeseen events on site during the construction phases. Collisions occur when a BIM object overlaps another BIM object due to the lack of space between them, e.g. when beams and columns collide with pipes, ducts or fittings.

Cutaway 3D views are now stored within the Project Navigator.

CUTAWAY 3D VIEW

The view generated in this way is no longer temporary and always remains active. It is possible to regenerate the model while keeping complete and partial views of the project at the same time. In the case of complex projects, this functionality is convenient for keeping the generation focused only on the portion in which you are working.

switch between the portion at floor elevation and the portion with relative elevation

SPLIT LEVEL

Thanks to the new options for managing split levels, certain situations typical of plans with elevation differences within them can be handled more easily.

It is possible to set a sub-elevation within a plan in order to refer to that elevation directly. During drawing, a convenient button allows you to quickly switch between the portion at floor elevation and the portion with relative elevation.

directly from 2D view

ROOMBOOK IMPROVEMENTS

Room Book tool has been improved by updating the look of its dialog, which is now more modern and intuitive.

It is possible to reorder the values in the automatic table, as well as manage customised cartouches. The room name can be updated from a quick drop-down menu, directly from 2D view and without opening additional screens.

The next level of the hierarchy was created, the variants.

VARIANTS

Variants are elements that differ only slightly from similar elements.
Variants provide a convenient way to record new items in the library by changing a few parameters.

ARCHLine.XP 2023

IMPROVED FUNCTIONALITY: SPLINE EDITING

Editing a spline with control vertices generally provides finer control over reshaping a small section than editing with fit points.
Control vertices are signed with purple dots and fit points are signed with blue dots.

ARCHLine.XP 2023

CREATING WALLS WITH DIMENSIONS

The Wall Dimension tool is enriched with new options for defining rules to be executed and the possibility of storing dimension sets.

The sets can also be activated from the Subcommand Bar during drawing. This functionality allows you to store your own standards and recall them quickly, speeding up the important dimensioning process of the drawing.ής.

ARCHLine.XP 2023

TWO-POINT PERSPECTIVE

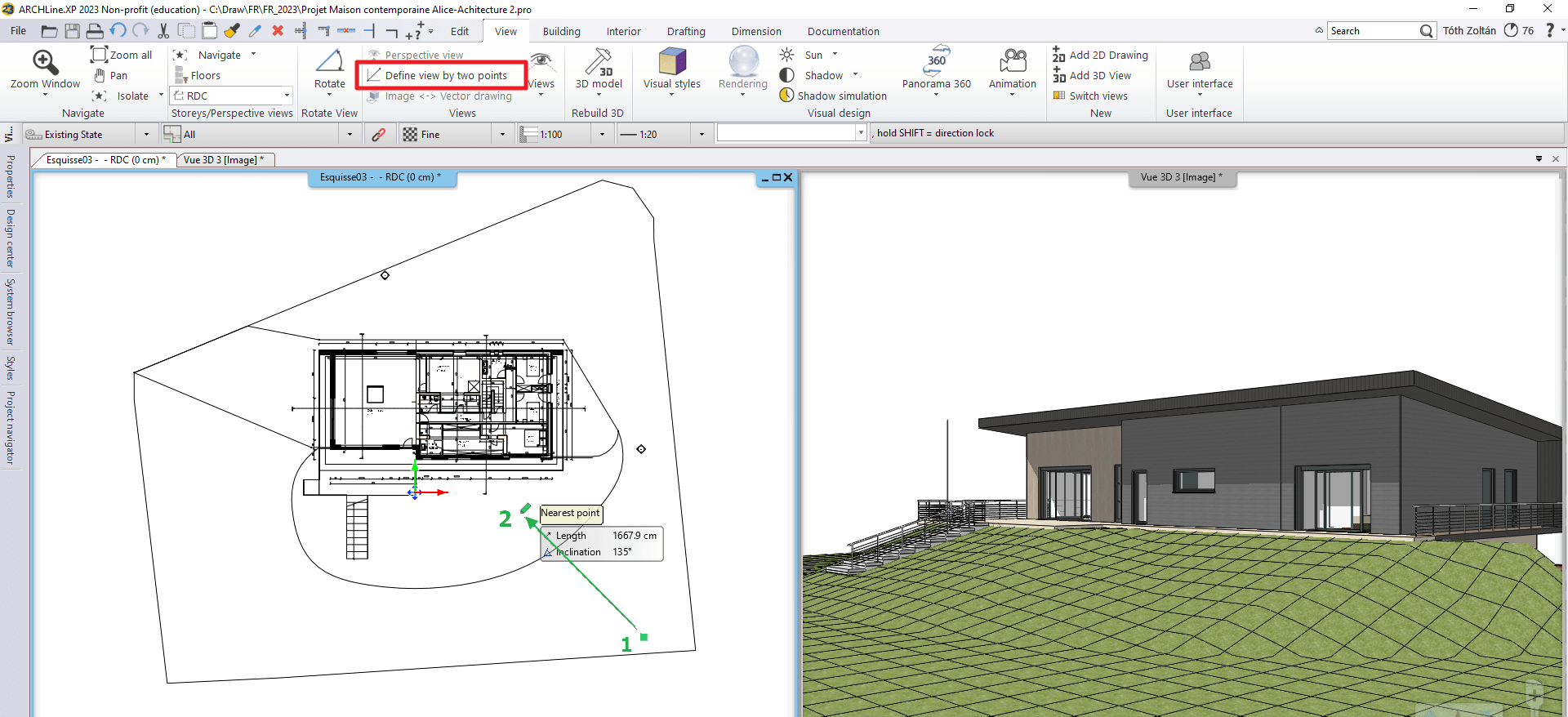

The command allows you to set the perspective 3D view directly with 2 clicks in View-2D.

Simply define the position of the camera and the observed point.

ARCHLine.XP 2023

PLOT FEATURES

The management of the Plot Layout has been simplified by acting on the appearance of the property bar.

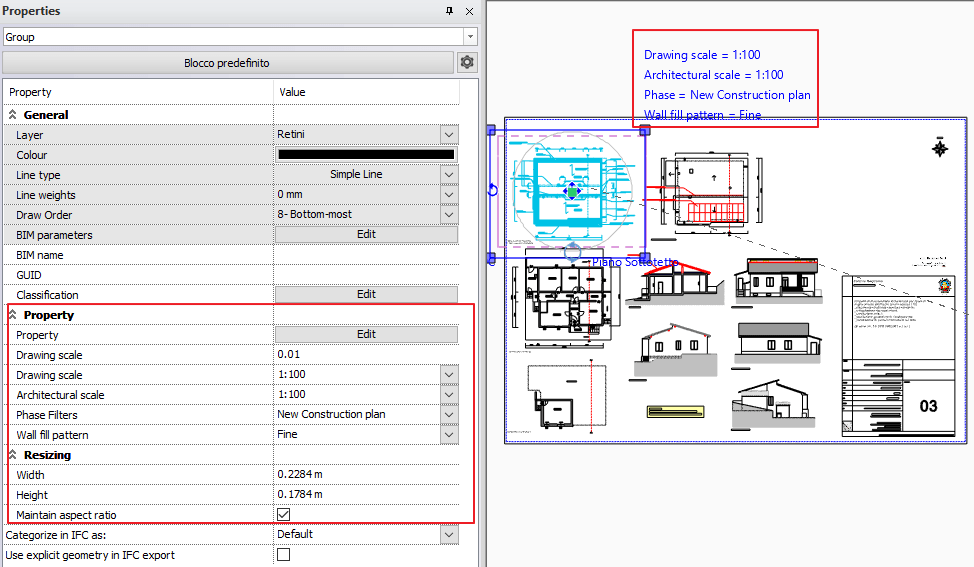

The most important parameters for the definition of the graphic detail can now be set directly with grips, which speeds up the customisation of the workpieces considerably, as it no longer requires a second dialogue to be opened.

ARCHLine.XP 2023

FURNITURE VARIATIONS

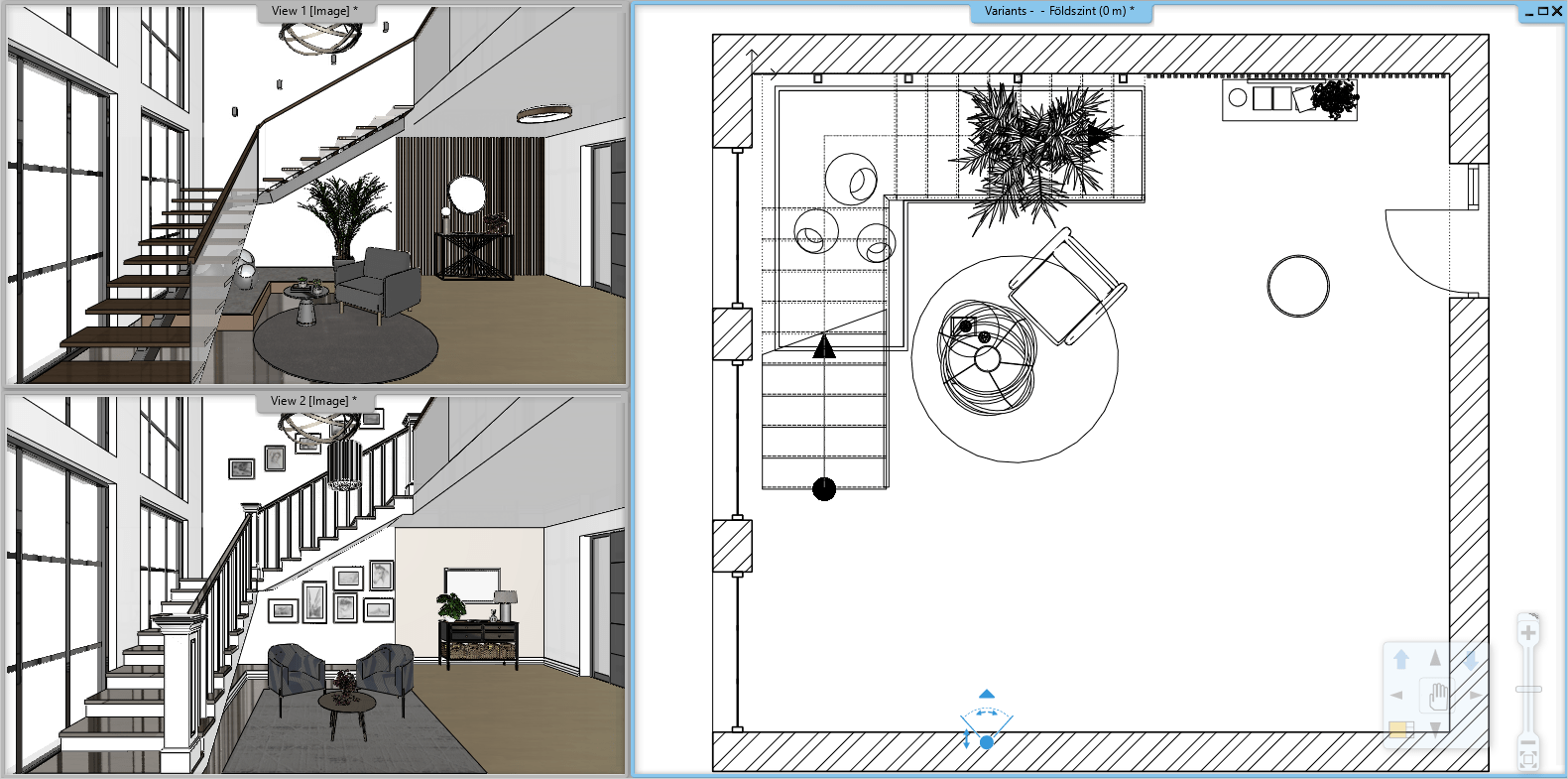

It is possible to display different layer variations in different 3D views, making it easier to compare different versions of the design.

This is actually a more global change made to Layer Management. In fact, Layer-Filters can now be stored and associated to a specific 3D-View.

ARCHLine.XP 2023

FIND MATERIAL

Until now, it was always possible to identify a material used in the design with a right-click on the model. This material was quickly highlighted in the Design Centre and from there it was possible to change its properties directly.

With a new Design-Centre command it is now possible to perform the reverse operation: to identify objects to which a material is applied in the library.

ARCHLine.XP 2023

LIGHTS OVERVIEW

Step up your lighting game with our latest feature!

With this option, you can easily display all light sources in your space, indicating whether they’re on or off. For lamps with multiple light sources, you’ll see a number displayed, making it easier to keep track of your lighting setup.

ARCHLine.XP 2023

RENDER IMAGE INTEGRATION

Seamless integration between the rendering program and ARCHLine.XP!
With this new setting, you can easily import your rendered images directly into ARCHLine.

ARCHLine.XP 2023

KBB FURNITURE FRONTS WITH MULTIPLE HANDLES

Unlock the Possibilities with Multiple Handle Options!

Add variety to your storage furniture by choosing from a range of handles for the same drawer or door.

ARCHLine.XP 2023

STAIRS GEOMETRY EDITING

Control arrows display on the stair indicating which dimensions are unlocked and available to reshape.
